1994 Toyota Supra RZ
Seattle, WA, 98004
$75,000
- Austin, Texas, 78613
$165,000
Sold For
Get Pre-approved

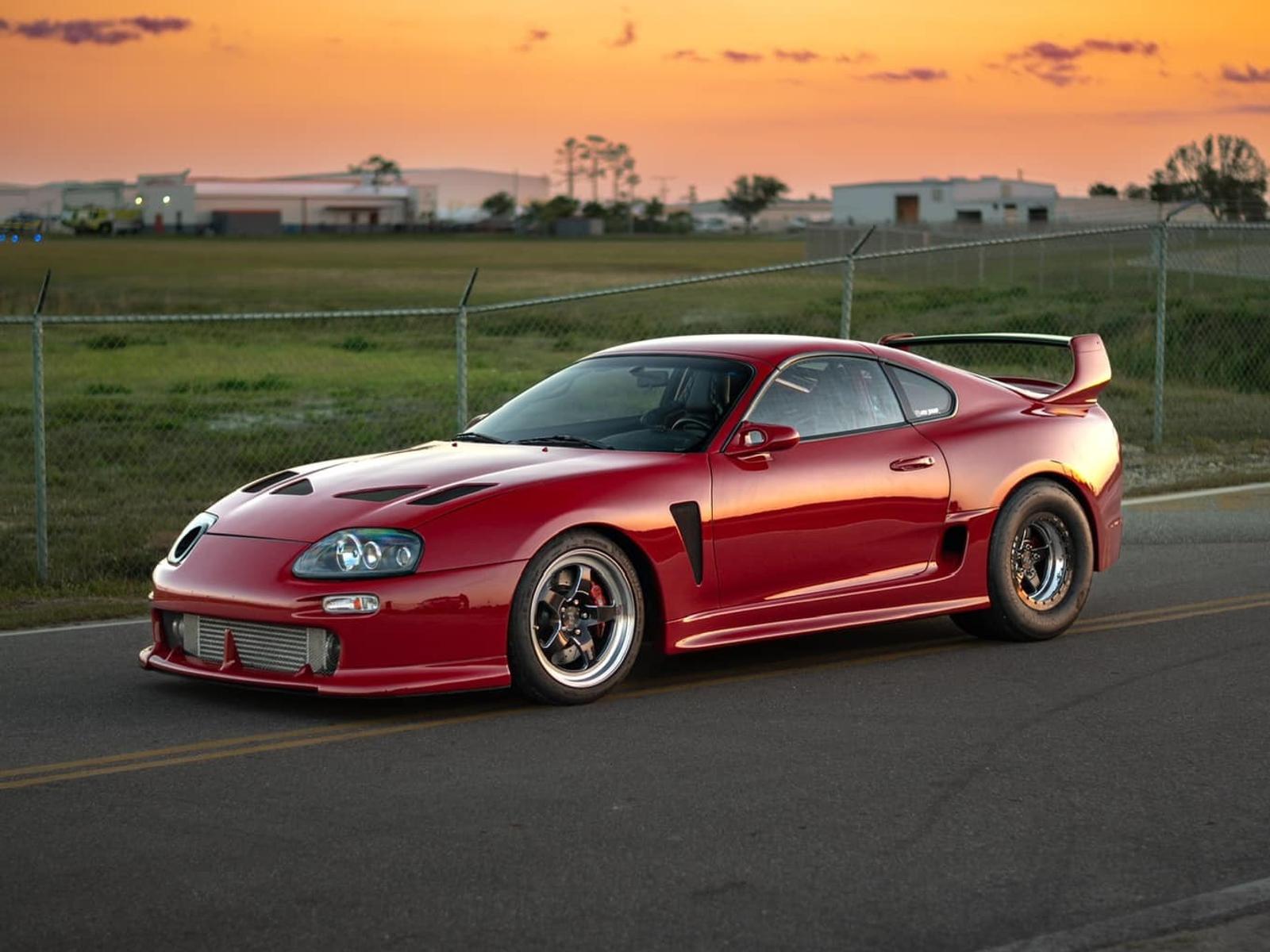

This 1993 Toyota Supra Turbo was sold. Find more like this one here
Vehicle highlights
Buyer Toolkit
Finance
Learn more about how you can finance this car.
Description
1993 Toyota Supra
True twin true v160
3k miles on fresh build from 2019
SPEC SHEET
Year / Make / Model: 1993 Toyota Supra
Chassis Code: JZA80
Launch RPM: 5,500 RPM
Shift RPM: 9,000 RPM
Redline RPM: 9,000 RPM
Peak Boost: 35 psi (could easily push to 45lbs safely)
Fuel: E-85
ENGINE
Engine Code: 2JZ-GTE
Displacement (cc): 3,173.3cc
Bore & Stroke (mm): 86.5mm x 90mm
Peak Horsepower (@ RPM): 1,308whp
Peak Torque (@ RPM): 883 lb-ft
Dyno Type: Dynojet 248
Engine Builder: Dynosaur Performance/PHR
Block Modifications: Half Filled, PHR Billet Main Caps
Machine Work: Dynosaur Performance
Compression Ratio: 11.0:1
Pistons: CP
Connecting Rods: R&R Aluminum
Crank: Brian Crower LW
Bearings, Main and Rod: King Main, Clevite Rod
Camshafts: Titan 280
Valves/Springs/Retainers: Ferrea Valves, Supertech Dual Springs & Titanium Retainers
Cylinder Head Modifications: Powerhouse CNC Cylinder Head, Shimless Buckets
Cylinder Head Gasket: OEM Toyota
Head/Main Studs: ARP L19 Head Studs, ARP Main Studs Intake Manifold/Throttle Body: Hypertune
Air Induction System: Carbonetics Headlight Intake, PHR 5″ Intake
Exhaust Manifold: PHR S45
Exhaust System/Downpipe: PHR 4″ Downpipe/Midpipe
Muffler: Custom Dual Exhaust by PHR
Wastegate/Blow-Off Valve: TiAL 60mm / TiAL Q
Intercooler: PHR 5 inch
Fuel Injectors: ID2000
Fuel Pump(s): Weldon 2345 and Bosch 044
Additional Fuel Delivery: Custom PHR Fuel System, Hypertune Fuel Rail
Weldon A2047 Regulator
Fuel Cell: Custom PHR
Engine Management System: AEM V2
Engine Management Tuner: Clint Baird of Dynosaur Performance
Boost Controller: AEM V2, Controlled with 9pos switch
Ignition System: M&W Pro16b
Spark Plugs: NGK
Nitrous Oxide: Custom PHR Kit
Cooling System: Fluidyne Radiator, PHR Race Radiator Hose Kit w/ Billet Upper Waterneck
Lower Waterneck Rotator, PHR Dual SPAL Fan Kit
Oil System: PHR Upgraded Oil Pump
PHR Oil Filter Relocation Kit
Performance Electronics: PHR Alternator
TURBOCHARGER
Turbocharger: Precision 8385
Compressor Wheel Specs: 83mm
Turbine Wheel Specs: 85mm
CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): HKS Drag
Sway Bars: TRD
Chassis Bracing: Custom PHR Roll Bar
Additional Suspension Components: PHR Arced Trac Bars
Transmission: Factory V160
Final Drive: 3.13
Clutch: Tilton Triple Carbon
Flywheel: Heavy
Differential(s): TRD
Axles / Driveshaft: Stock Axles, PHR 3.5″ Driveshaft
Wheels: Front:Weld RTS S71 18×9
Rear:Weld RTS S71 15×11, 8.5″ BS
Beadlocked, PHR Billet Center Caps, PHR Billet Hubcentric Rings
Tires: Front: Michelin Pilot Sports
Rear: Mickey Thompson ET Street R 325/50R15
Brake Calipers (F&R):
AP (Stillen) Front Big Brake Kit
Etc.: PHR ABS Delete
INTERIOR
Roll Bar / Cage: Custom PHR Roll Bar
Seats/Harnesses: Sparco and G-Force
Steering Wheel / Quick Release: TRD
Gauges: PHR Gauge Cluster, BTI CAN Gauge for AEM
AEM Wideband Gauge
Etc.: Custom Trunk Setup by PHR
EXTERIOR
Front Bumper: Authentic TRD Widebody
Hood/Rear Spoiler/Wing: TRD
Custom Body Work/Paint: Paint by Mick’s Automotive in Oklahoma City
